Canadian Solar

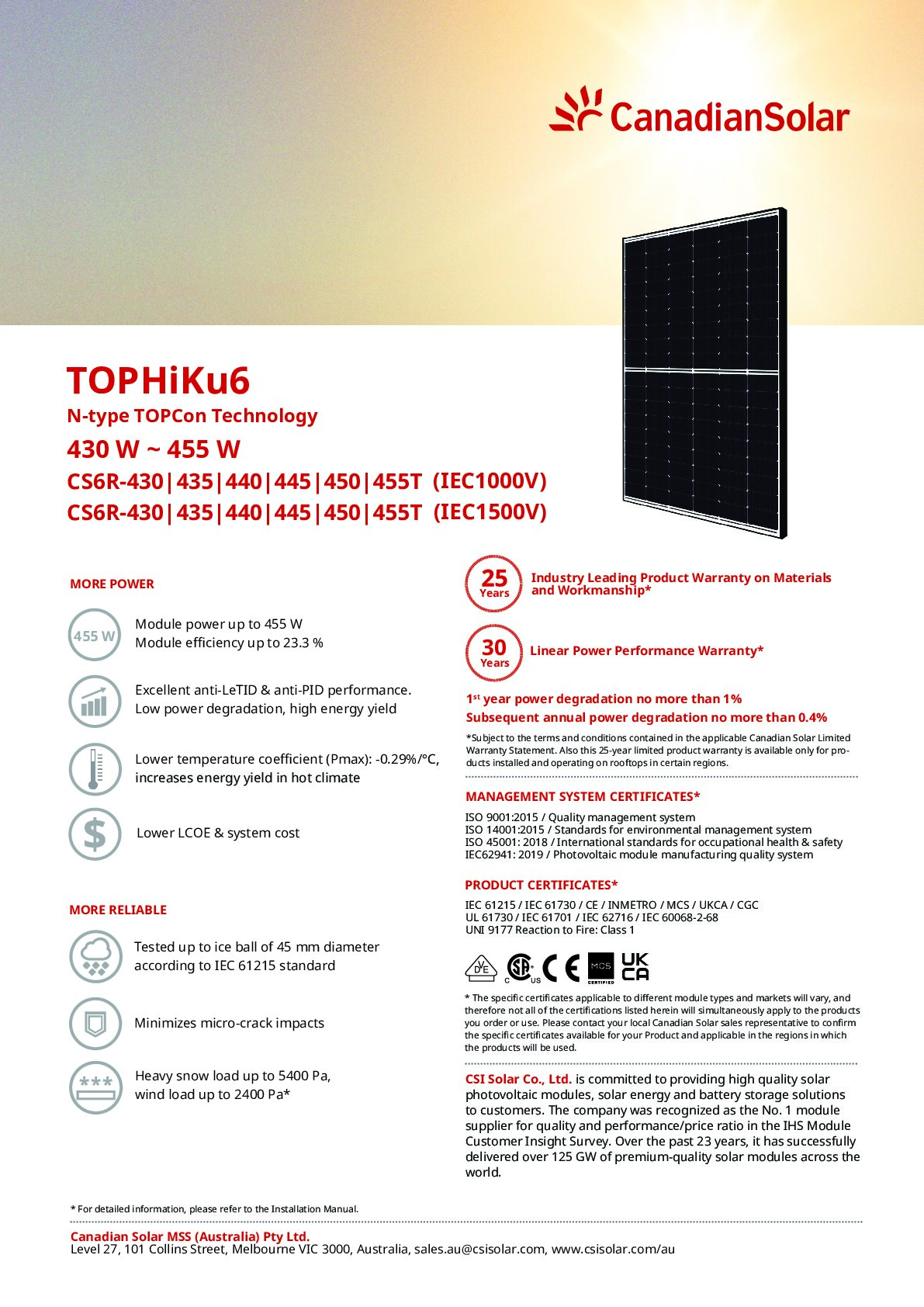

TOPHiKu6 CS6R-430T
The TOPHiKu6 CS6R-430T is a solar panel from Canadian Solar, made in China and Thailand.
Specifications
Technical data
| Manufacturer | Canadian Solar |
|---|---|
| Model | TOPHiKu6 CS6R-430T |
| Wattage | 430 W |
| Efficiency | 22% |
| Cell Type | N-type TOPCon |
| Number of Cells | 108 |
| Dimensions (W x H x D) | 1134 mm x 1722 mm x 30 mm |
| Weight | 21.3 kg |
| Colour | Black Frame |
| Made In | China and Thailand |
| Durability | 30-year linear power warranty; no more than 1% in year 1, then no more than 0.4% per year |
| MEPV | 1 |
| IBC Technology | 0 |
| Fitted Dimensions (W x H) | 1134 mm x 1722 mm |
| Manufacturer Item Code | CS6R-430T |
TOPHiKu6 CS6R-430T performance analysis
This page is about the TOPHiKu6 CS6R-430T. The figures on this model are 430 W, 22% efficiency, 108 cells, N-type TOPCon. The module measures 1134 mm by 1722 mm.
It weighs 21.3 kg. The finish is Black Frame. The specification table below is the source for those numbers.
TOPHiKu6 CS6R-430T pros
- 430 W per module: 10 modules reach at least 4 kWp at the rated output
- 22% module efficiency gives a useful comparison where usable roof area is limited
TOPHiKu6 CS6R-430T cons
- The 430 W rating is measured under standard test conditions; roof direction, shade and temperature change real output
- Each module occupies 1.95 m2 (1134 mm by 1722 mm), before mounting gaps and edge clearances
- 21.3 kg per module adds about 10.9 kg/m2 before mounting hardware; roof suitability still needs checking
Conclusion
The TOPHiKu6 CS6R-430T should be judged from its own wattage, efficiency, and size, not from another module in the same brochure.
