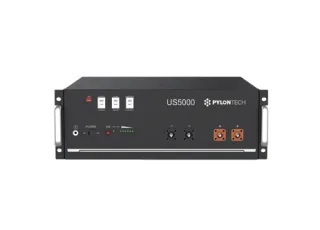

Pylontech US5000
Sold by
Pylontech 4.56 kWh usable, LiFePO4, 10 year warranty. UK home solar storage.
RRP inc VAT
£1,600.00
Price on application
SKU: PYLON-US5000
Choose options
Pick an option to see price and stock.
RRP inc VAT: £1,600.00 · · Out of stock
That combination is not available.
Get an installation quote
Have this specified, supplied and installed by a vetted installer.
Pylontech US5000
A 4.56 kWh usable LiFePO4 battery for UK home solar storage.
At a glance
- Usable capacity 4.56 kWh
- Nominal capacity 4.80 kWh
- LiFePO4 chemistry
- Nominal voltage 48 V
- 6,000 cycle life
- 95% DoD
- 95% round-trip efficiency
- 10 year warranty
- IP20 enclosure
- hybrid installation
Buying from Kilowatts
Compare this Pylontech battery on Kilowatts.uk and request a solar installation quote. The specification table lists every stored figure.
Specifications
| Brand | Pylontech |
|---|---|
| Model | US5000 |
| Usable capacity | 4.56 kWh |
| Nominal capacity | 4.80 kWh |
| Voltage | 48 V |
| Voltage range | 44.5 V - 53.5 V |
| Depth of discharge | 95% DoD |
| Cycle life | 6000 |
| Charge rate | 3.00 kW |
| Discharge rate | 3.00 kW |
| Continuous current | 74 A |
| Peak current | 100 A |
| Chemistry | LiFePO4 |
| IP rating | IP20 |
| Dimensions | 442mm x 420mm x 161mm |
| Weight | 38.00 kg |
| Warranty | 10 years |
